MEY-1230 Mobile Screen And Washer

The MEY Series Mobile Screening and Washing Plants are designed to perform screening and washing of production materials.

Thanks to its washing system, it provides obtaining clean final products free of dirt. The washing processes of the products are performed with vibrating washing screen and spiral washer.

70-120 Ton/Hour
Production Capacity

5 m³
Feeding Bunker

TE-1230
Vibrating Washing Screen

Ø 500x5000 mm
Screw Washer

Mobile
Chassis

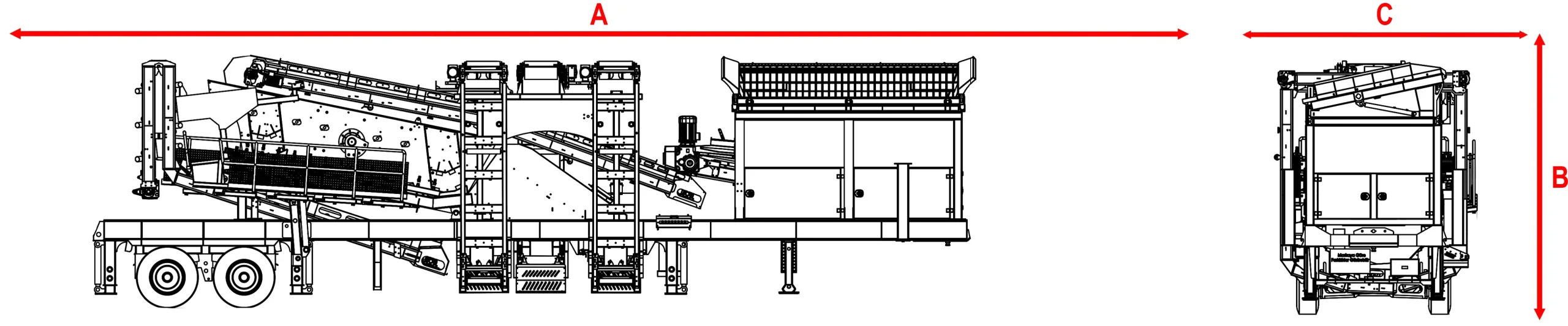

MEY-1230 Mobile Screening Washing Plant Technical Specifications

For detailed information Contact Us

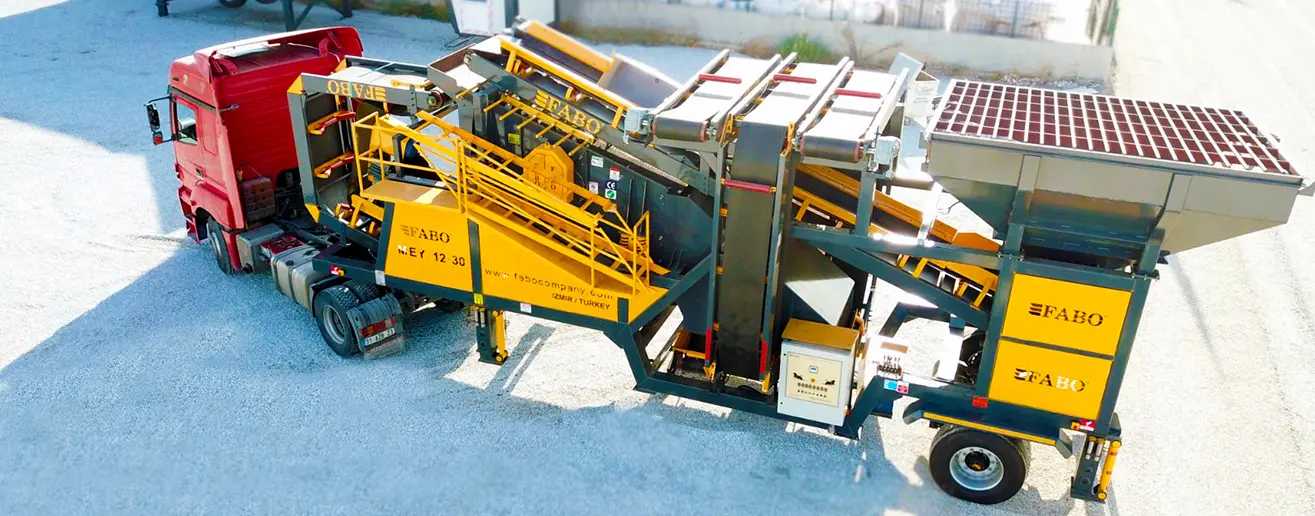

FABO MEY-1230 mobile natural screening and washing plant is an ideal solutions for the classifying and WASHING of materials which was provided as pre-crushed.

Fabo MEY Mobile Washing range are highly versatile and fully portable washing systems mounted on a heavy duty triple-axle chassis for ease of transport and set-up. The MEY Mobile Plant provides an efficient and cost effective solution for short to medium term projects. The MEY mobile plants can produce up to 4 quality washed sands and washed aggregates saleable products.

The MEY mobile plant can be supplied with a mobile feeding and pre-screen unit, and mobile stockpilers offering a complete turnkey processing system to provide maximum productivity and portability for sand and gravel producers.

This Super Machine is a combination of:

  • Grizzly Feeder Bunker
  • High Stroke Type Vibrating Screen
  • Folding Type Feeding and Stock Conveyors
  • Washing Screw
  • Water jets inside the Screen
  • Hydraulic feet
  • Mobile Chassis with axles and tires
  • Fully Automation System
  • Electric Generator(optional)

*Most important advantage of plant is having all equipment on only a single chassis. It can be done by only one truck head.
